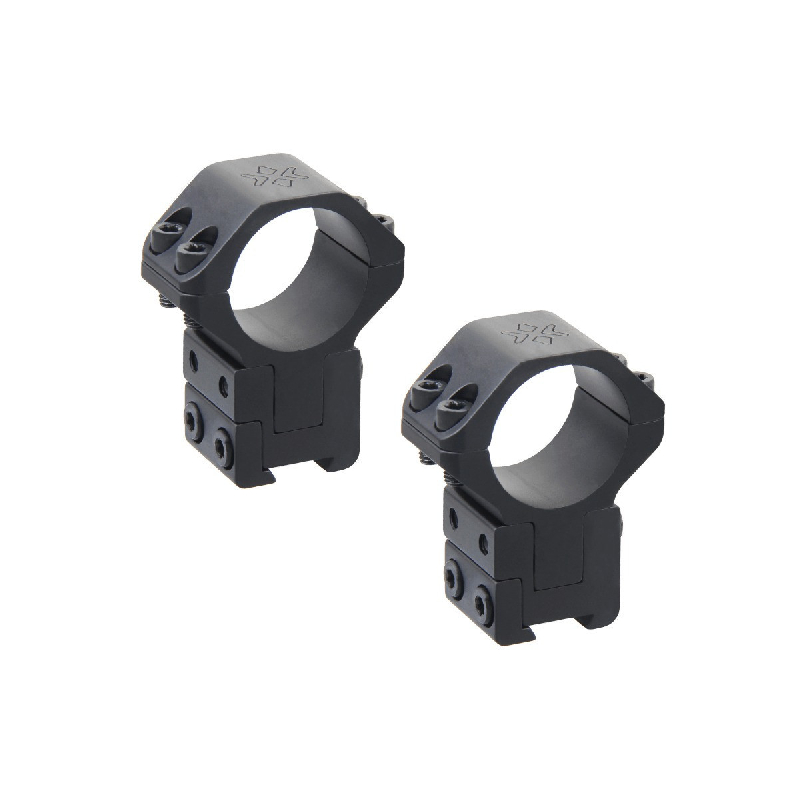

Vector Optics X-ACCU 25.4mm 1" Adjustable Elevation Dovetail Rings (V-26DA)
The Vector Optics X-ACCU 25.4mm 1" Adjustable Elevation Dovetail Rings are engineered for shooters who demand exceptional precision, perfect alignment, and the flexibility to fine-tune their optic’s elevation without relying entirely on scope turret adjustments. Specifically designed for 11 mm dovetail rails, these rings combine robust construction, micro-adjustable elevation, and secure locking mechanisms, making them ideal for air rifles, rimfire rifles, and small-caliber precision firearms.
Adjustable Elevation with Lockable Pin
With an adjustable height range of 33 mm to 39 mm (1.3"–1.5") from base to ring center, these rings allow for precise cant adjustments. This enables shooters to maintain optimal optical center and maximize the available turret travel for long-range shots. The unique up-and-down construction with a lockable pin ensures adjustments stay secure even under repeated recoil and field use.
Premium Construction for Accuracy
Machined from 6061-T6 aircraft-grade aluminum with a black matte anodized finish, these rings are built to withstand the rigors of real shooting conditions. The steel cross-bolt design reinforces the mount’s stability, while precision machining guarantees perfect alignment between rings, reducing the risk of scope tube stress and improving accuracy.
Secure Scope Retention
- Fits all 25.4 mm (1") scope tubes
- Ring width: 21 mm (0.8") for enhanced grip
- Four Torx screws per ring for maximum clamping force
- Lockable pin prevents unwanted movement after adjustment
- Designed for real firearms and precision airguns
Technical Specifications
| Specification |
Detail |
| Ring Diameter |
25.4 mm / 1 inch |
| Height (adjustable) |
33–39 mm / 1.3–1.5 inch |
| Ring Width |
21 mm / 0.8 inch |
| Weight (net) |
105 g / 3.7 oz |
| Material |
6061-T6 aluminum |
| Finish |
Black matte anodized |
| Rail Type |
11 mm dovetail |
Torque Recommendations
- Scope ring screws: Do not exceed 18 inch-pounds
- Mount installation: Recommended 25 inch-pounds torque on dovetail clamp
Included Accessories
- Hex key for secure installation
- Two adjustable elevation dovetail rings
Practical Applications
- Precision air rifles and rimfire rifles where droop compensation is required
- Long-range small-caliber shooting without extensive turret adjustments
- Competitive target shooting where exact point-of-impact alignment is essential
Summary
The Vector Optics X-ACCU 25.4mm 1" Adjustable Elevation Dovetail Rings (V-26DA) provide unmatched precision, secure retention, and the flexibility to optimize scope positioning for your shooting discipline. With robust aluminum construction, adjustable elevation, and a lockable pin system, they are the perfect mounting solution for serious shooters using dovetail-based platforms.
